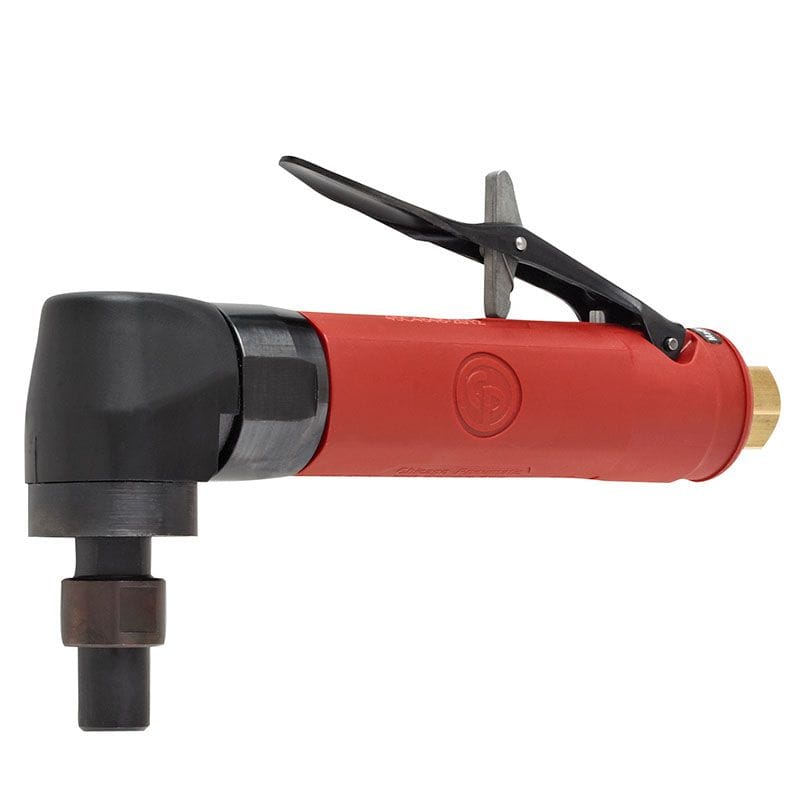

6151604240 CP3019-20AC CNOMO Chicago Pneumatic Angle Die Grinder

6151604240 CP3019-20AC CNOMO Chicago Pneumatic Angle Die Grinder

Name: 6151604240 CP3019-20AC CNOMO Chicago Pneumatic Angle Die Grinder
SKU: 6151604240
Price: 738.12 GBP
Availability: InStock
Rating: 4.9 (189 reviews)

£738.12 Ex VAT

(£885.74 Inc VAT)

List Price: ~~£1,124.76~~

[brand_catalog]

Available on back-order

SKU: 6151604240

Approved CP Service & warranty agents

The CP3019 Series - angle pneumatic Die Grinders, with a 1/4' (6.35 mm) collet capacity or CNOMO collet capacity consists of 4 models with 2 free speed options from 12,000 to 20,000 rpm. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. The range is characterized by a compact design and a simplified safety lever.

★
Highest durability in demanding applications, up to 2,000 hours maintenance intervals
★
Streamlined safety lever for operator safety
★
Powerful 0.5 hp (375 W) governed motor ensures safety
★
Compact body with an insulating composite over-housing for operator comfort and superior ergonomics

Technical Specifications

Size & Weight

Length (L)	216 mm
Weight	0.51 kg

Speed

Free Speed	20000 rpm
Air consumption at free speed	5.3 l/s

Air information

Air consumption at load	9.4 l/s
Air inlet thread size (in)	1/4
Air inlet thread type	NPT
Max dynamic air working pressure	6.3 bar
Min hose diam (16 ft hose length)	0.31 in
Min hose diam (5 m hose length)	8 mm

Noise & vibrations

Sound Power	93 dB(A)
Sound Pressure	82 dB(A)
Uncertainty vibration-K	3.4 m/s²
Vibration	4.3 m/s²

Power

Max power

375 W

Tightening Strategies

Angle Type

90°

Design & Functions

Collet max capacity	1/4 (6.4mm)
Collet/Collet holder/Collet nut type	Cnomo type
Exhaust	Rear
Governor type	Ball
Main Material type	Aluminium, Composite over-sleeve
Rotative inlet	No
Spindle lock	No
Starting system	Safety lever
